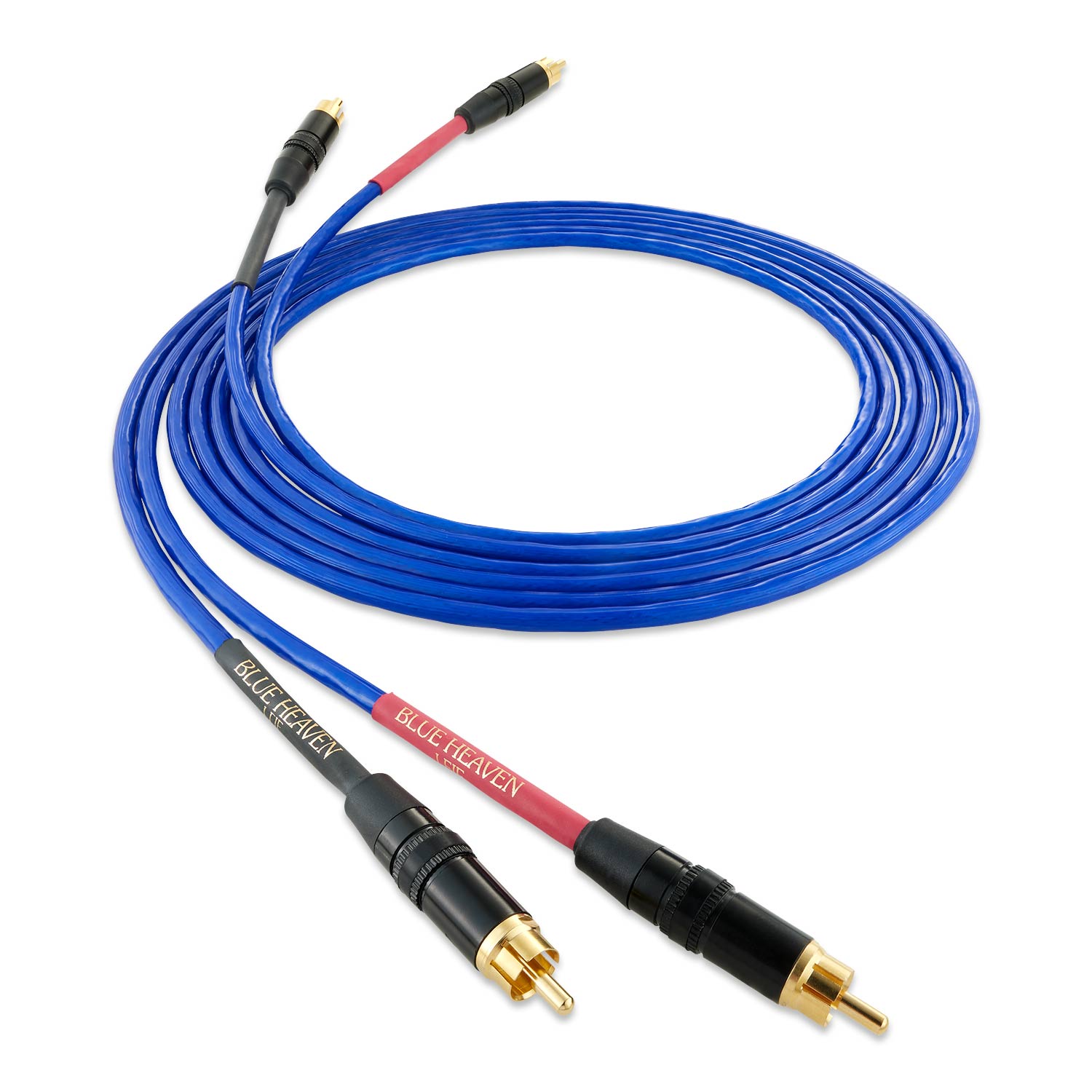

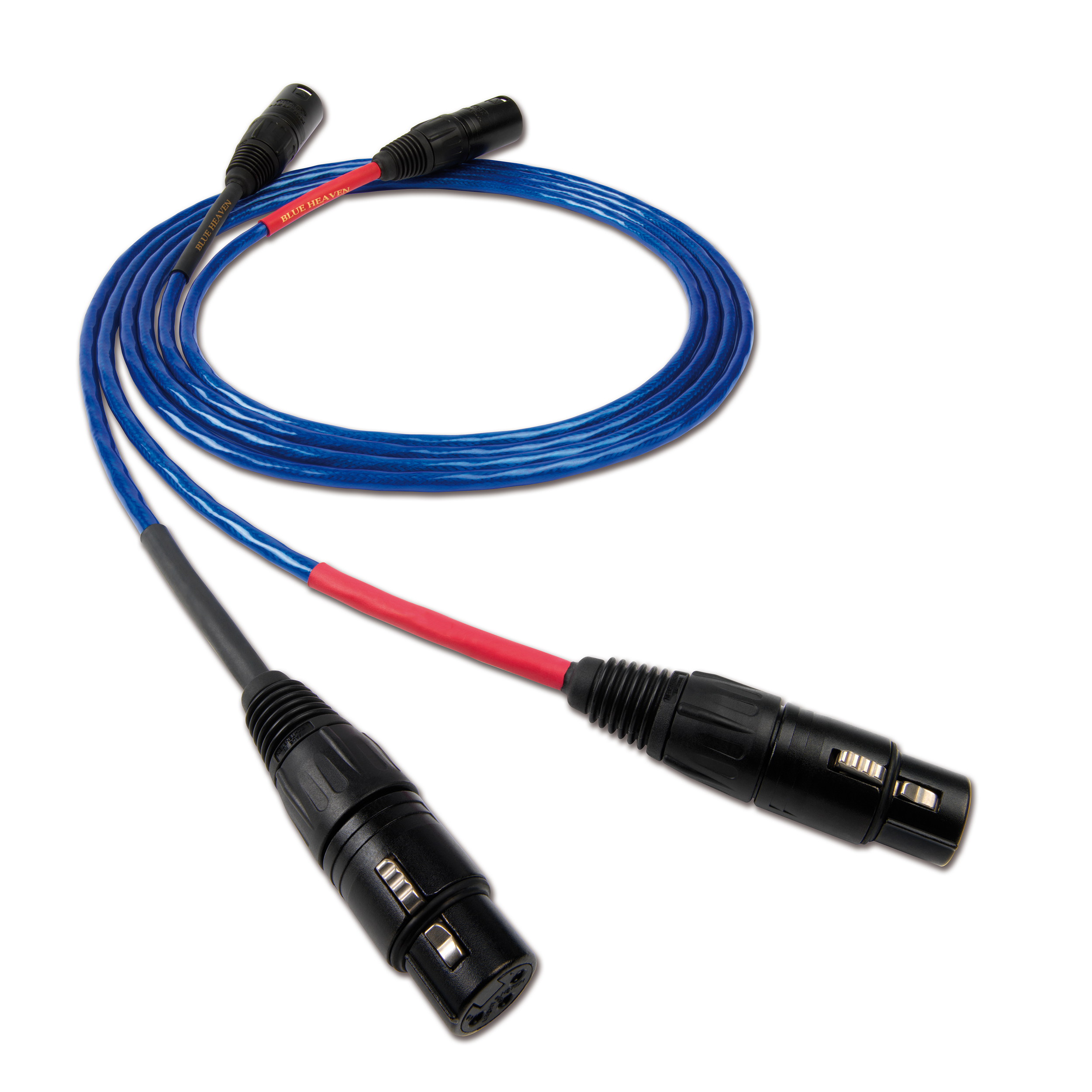

BLUE HEAVEN ANALOG INTERCONNECT

The Blue Heaven LS Analog Interconnect is a fully-shielded design that can be terminated for balanced or single-ended connection. It employs four, heavy-gauge 24 AWG, silver-plated 99.9999% OFC solid core conductors, precision wound in a minimum cross-section configuration that eliminates unnecessary fillers or padding elements. The insulation is high-grade FEP, selected for its superior dielectric performance, while the elegant minimalism extends to the carefully selected low-mass connectors and differential grounding. Like all Nordost cables, the Blue Heaven LS Analog Interconnect is manufactured and hand-terminated in the USA, enabling us to further guarantee consistent performance. The result is a high-speed, low-loss interconnect that preserves the sense of musical power and momentum, bringing believable shape and presence to performers, color, life and drama to their performances.

SPECIFICATIONS

Insulation:   Fluorinated Ethylene Propylene (FEP)
Construction:   Mechanically tuned lay
Conductors:   4 x 24 AWG
Material:   Silver-plated 99.9999% solid core OFC
Capacitance:   45.0pF/ft
Inductance:   0.046μH/ft
Overall Shield Coverage:   95%
Velocity of Propagation:   80%
Termination:   Gold-plated RCA or XLR

AVAILABLE CONNECTORS

Analog Interconnect Connectors
